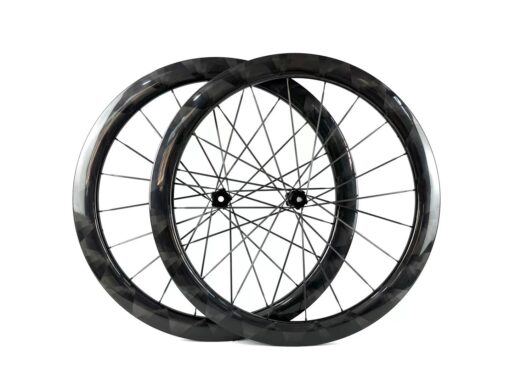

Disc Brake Carbon Spoke Wheels With Star Ratchet CSW02



Get Quote Now
We normally accept payment via PayPal and Wire Transfer(T/T), you also can use Visa or credit card to connect with PayPal account complete payment.

PayPal

Please make sure you input the correct account to prevent payment failure or issues occur.

specifications

Experience the future of cycling with our UD carbon spoke wheels. Crafted using advanced unidirectional carbon fiber technology, these wheels combine exceptional strength and lightweight design. Embrace a smoother, faster, and more efficient ride as the streamlined carbon spokes redefine performance and aerodynamics. Elevate your cycling journey with the cutting-edge innovation of UD carbon spoke wheels.

RIMS

SIZE: 700C

RIM TYPE: Clincher and Tubeless-Ready

USE: Disc Brake Road Bike

RIM MATERIAL: High Premium Toray T700 Carbon Fiber

RIM FINISHED: UD Matt weave

DEPTH:

38mm|45mm|50mm|55mm|60mm|80mm – ACD25 Series

22mm|33mm|38mm|44mm|50mm|55mm|70mm – ACD28 Series

INTERNAL/OUTER:

18mm/25mm – ACD25 Series

21mm/28mm – ACD28 Series

OFFSET: 0mm

RIDER WEIGHT LIMITED: 100kg/220lb

VALVE HOLE TYPE: Presta Valve

MAX TIRE PRESSURE: 125psi/8.6bar

OPTIMAL TIRE CLEARANCE: 700*25~28C recommended


HUBS

MODEL: OE UD Carbon Spoke Disc Hubs

FRONT AXLE SIZE: 12 x 100mm Thru Axle

REAR AXLE SIZE: 12 x 142mm Thru Axle

FREEHUB BODY: Shimano Road 11S/Sram XDR

BRAKE INTERFACE: Center-Lock

NUMBER OF HOLES: Front 21Hole/Rear 24Hole

SPOKES

SPOKES: UD Carbon Spokes Straight-pull (CS03)

NIPPLES: Black

OTHERS

WARRANTY: 2-Years Warranty

RIM CROSS SECTION

ACD25 series road disc brake rims
ACD25 series road disc brake rims
ACD28 series road disc brake rims
ACD25 Series Road Disc Brake Rims

UD Carbon Spokes


ud carbon spokes


ud carbon bladed bike spokes


carbon fiber spokes thread side


ud carbon bladed spokes

GET IN TOUCH

FAQs

Please click the inquiry button and fill the contact form with your interest in wheels spec or send inquiry email direct to [email protected].
After we received your information we will get in touch with you by email within 24 hours.
If you prefer to use the quick communication method you can send us the inquiry by  whatsapp logo WhatsApp+8618900229497.
Yes, we offer a 2-years warranty from the date of purchase.
The warranty is valid only for the original owner.
All our carbon wheels will 100% QC check before releasing to the customer, If you have found the defect in the products, Please provide pictures or video, serial number label picture by email or submit the claim form accordingly, after we received your information we will provide a solution to you asap.

We are consistently trying to improve our rims weight limits, currently our carbon wheels max rider limit was 120kg(265lbs).

After your order have been released We will provide a 13-digit courier number consisting of letters and numbers.(eg:EE123395481HK). You can use this number to track the logistics information of your order on https://www.17track.net/en.
