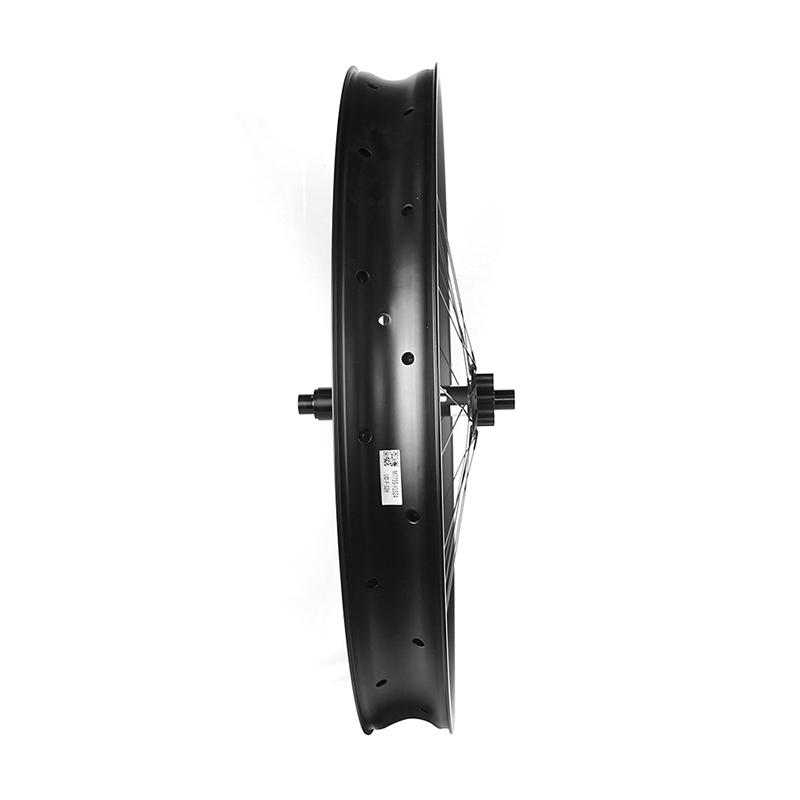

Carbon Fat Bike Wheels – FLY85



Get Quote Now
We normally accept payment via PayPal and Wire Transfer(T/T), you also can use Visa or credit card to connect with PayPal account complete payment.

PayPal

Please make sure you input the correct account to prevent payment failure or issues occur.

specifications

RIMS

SIZE: 26er

RIM TYPE: Tubeless-ready(Hookless)

USE TERRAIN: Snow, Sand, Single Track

INTERNAL WIDTH: 80mm

OUTER WIDTH: 85mm

DEPTH: 22mm

OFFSET: 0mm(symmetric)

RIM MATERIAL: High Premium T700 Carbon Fiber

RIM FINISHED: UD Matt weave

ERD(EFFECTIVE RIM DIAMETER): 543mm

RIM WEIGHT: 620+/-15g

WHEELSET WEIGHT: 2226+/-15g

RIDER WEIGHT LIMITED: 120kg/265lb

MAX SPOKE TENSION: 135kgf

VALVE HOLE TYPE: Presta Valve

MAX TIRE PRESSURE: 25psi/1.7bar

OPTIMAL TIRE CLEARANCE: 4.0”~4.9” recommended


HUBS

MODEL: DT Swiss 350 Big Ride

FRONT AXLE SIZE: 15*150mm thru-axle

REAR AXLE SIZE: 12*197mm thru-axle

FREEHUB BODY: Shimano MTB 10/11S/Sram XD/Shimano Micro Spline

BRAKE INTERFACE: 6-bolt

NUMBER OF HOLES: 32H

SPOKES

SPOKES: Pillar 1423

NIPPLES: Aluminum Black, Aluminum Red

OTHERS

WARRANTY: 2-Years Warranty

carbon fat bike wheel rim cross section

GET IN TOUCH

FAQs

Please click the inquiry button and fill the contact form with your interest in wheels spec or send inquiry email direct to [email protected].
After we received your information we will get in touch with you by email within 24 hours.
If you prefer to use the quick communication method you can send us the inquiry by  whatsapp logo WhatsApp+8618900229497.
Yes, we offer a 2-years warranty from the date of purchase.
The warranty is valid only for the original owner.
All our carbon wheels will 100% QC check before releasing to the customer, If you have found the defect in the products, Please provide pictures or video, serial number label picture by email or submit the claim form accordingly, after we received your information we will provide a solution to you asap.

We are consistently trying to improve our rims weight limits, currently our carbon wheels max rider limit was 120kg(265lbs).

After your order have been released We will provide a 13-digit courier number consisting of letters and numbers.(eg:EE123395481HK). You can use this number to track the logistics information of your order on https://www.17track.net/en.
